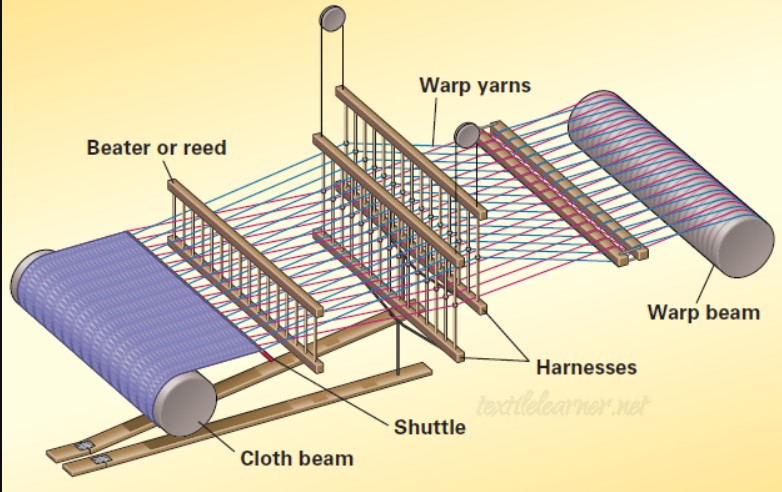

Handloom weaving is one of the most ancient and culturally rich crafts of India. Every thread woven on a handloom tells a story of tradition, skill, and meticulous craftsmanship. While the beauty of handloom fabrics often captures attention, the loom itself—the tool behind the magic—remains less understood. Let’s take a closer look at the main parts of a handloom, and how they work together to bring textiles to life.

1. The Warp Beam (Back Beam)

The warp beam holds the lengthwise threads, known as the warp. These threads are wound tightly onto the beam and act as the backbone of the weaving process. The warp beam is typically positioned at the back of the loom and feeds the threads forward during weaving.

Think of the warp as the canvas of the fabric—strong, structured, and foundational.

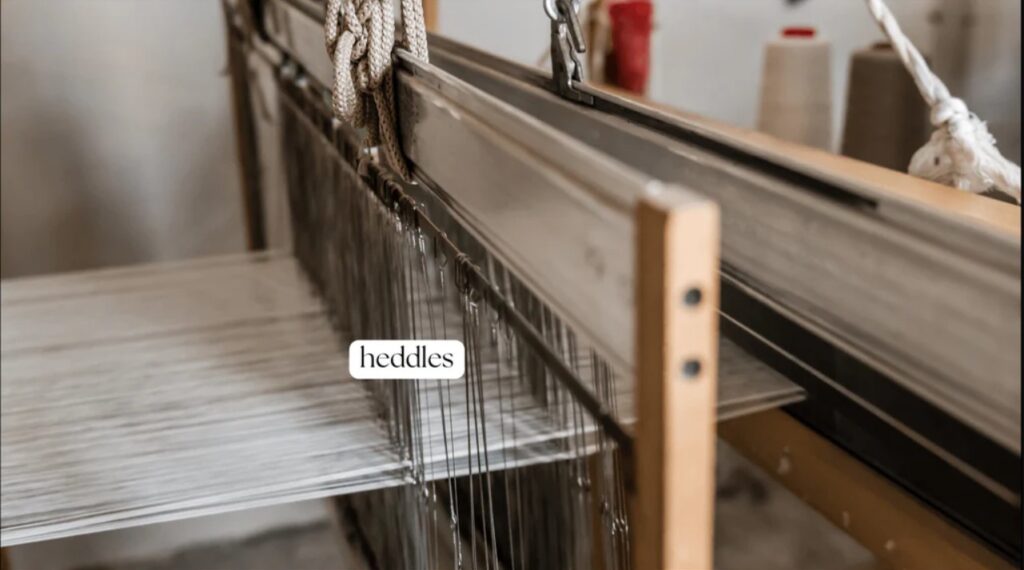

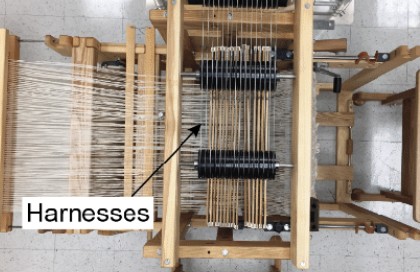

2. The Heddles and Harnesses

Heddles are vertical wires or cords with an eye in the center through which each warp thread passes. They are held in place by harnesses or shafts. When the weaver presses the treadles (pedals), these harnesses move up and down, lifting certain warp threads and creating a gap called the shed.

The heddles control which threads go up or down, determining the pattern of the weave.

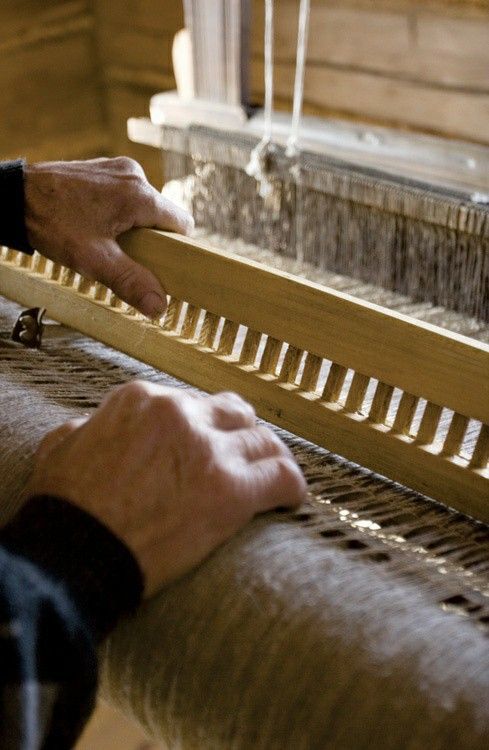

3. The Reed and Beater

The reed is a comb-like frame that keeps warp threads evenly spaced and aligned. It is fixed inside the beater, which the weaver uses to push (or beat) the weft thread into place after each pass.

A precise beat ensures tight, consistent fabric and contributes to the overall texture.

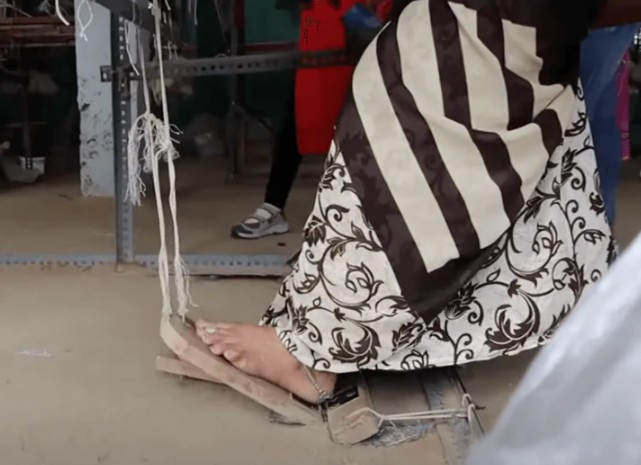

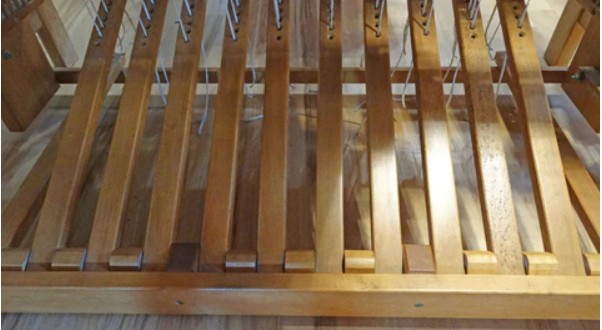

4. The Treadles (Pedals)

These foot pedals are connected to the harnesses. By pressing different treadles in a specific sequence, the weaver raises or lowers sets of warp threads, changing the shed and allowing for different patterns and weaves.

The treadles are like a piano—each combination creates a new rhythm in the fabric.

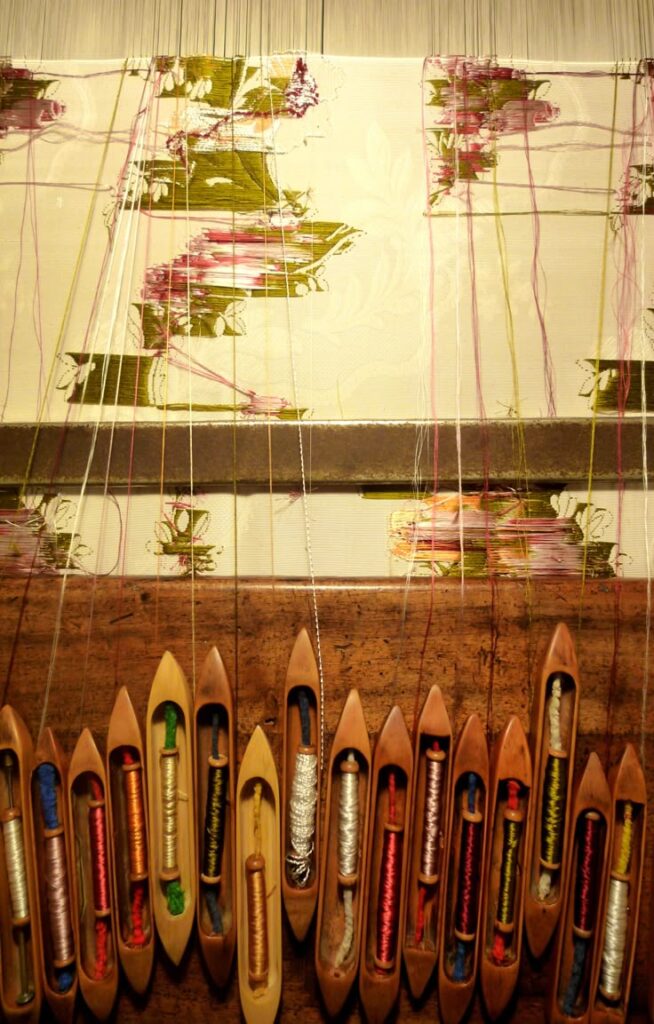

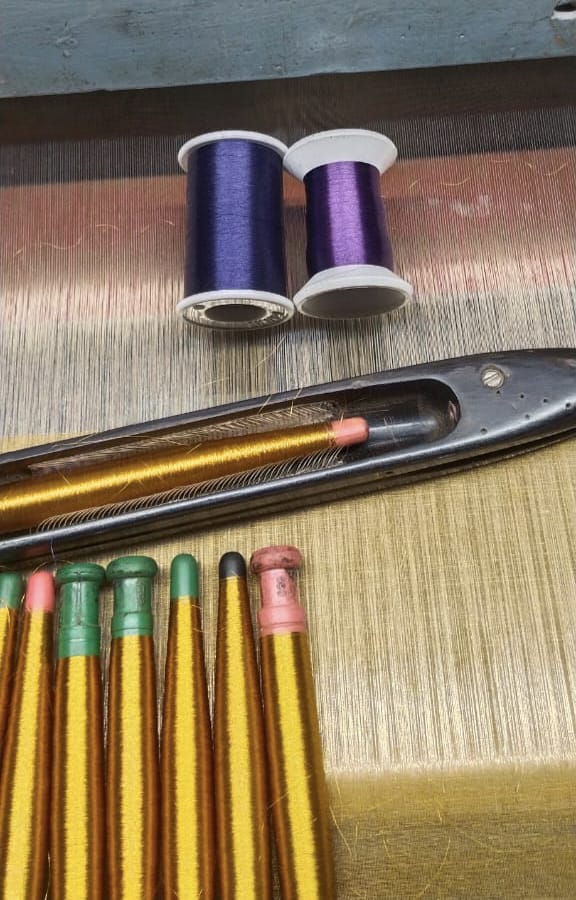

5. The Shuttle

The shuttle is a tool that carries the weft (the crosswise thread) back and forth through the warp threads. In traditional looms, the shuttle is thrown by hand, while in some semi-mechanized looms, it moves automatically.

The shuttle is the storyteller, weaving through the warp to bring color, design, and life.

6. The Cloth Beam (Front Beam)

As the fabric is woven, it is wound onto the cloth beam or take-up beam at the front of the loom. This keeps the workspace clear and allows the weaver to continue without interruption.

It’s where the final creation begins to reveal itself—thread by thread.

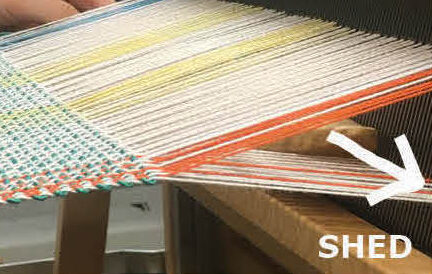

7. The Shed

While not a physical part, the shed is an important functional space—the gap between raised and lowered warp threads through which the shuttle passes. Creating a clean shed is essential for smooth weaving and prevents thread breakage.

A clear shed means a clean, error-free weave.

8. The Lease Rods

These rods are placed between the warp threads before weaving begins to keep them in order and prevent tangling. They are especially useful during warping and threading through heddles.

They act as guides, maintaining order and preventing chaos in the threading process.

Conclusion: Harmony in Wood and Thread

The handloom is not just a machine—it’s a symphony of wood, metal, and motion, operated by a skilled artisan. Each part, from the sturdy warp beam to the nimble shuttle, plays a vital role in the final outcome. By understanding the anatomy of a handloom, we not only appreciate the artistry of handloom fabrics more deeply but also honor the legacy of the weavers who keep this tradition alive.

Whether you’re a fashion enthusiast, textile lover, or a curious soul, diving into the world of handlooms is like stepping into a living heritage. And now that you know how it works, that fabric in your wardrobe just got a lot more meaningful.
